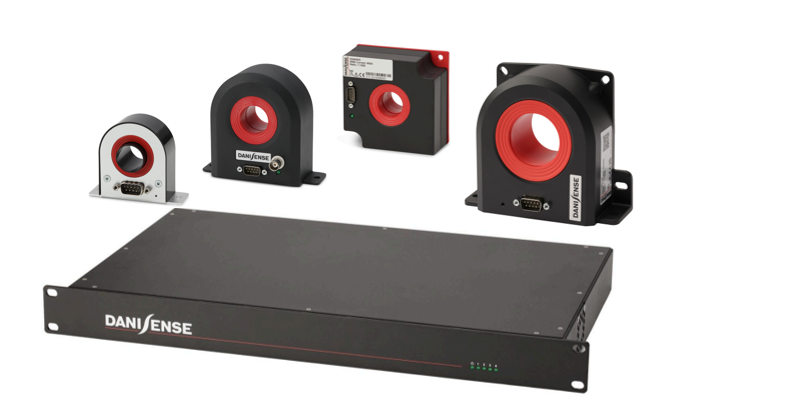

Current transformer DANISENSE
DS Series
AC / DC Precision Current Transducer
  • Bandwidth DC - 1 MHz
  • Basic accuracy 0.01% of Current range
  • Output signal current or voltage

  • ASPC protection
  • Full aluminium case
  • Power Supply +/- 15 V (option)
    models Current AC Strom DC/pk bandwidth basic accuracy secondary side
    DS50-ID 50 A 75 A DC - 1 MHz 0,01 % Current output 9-pin. SUBD
    DS50-UB-1V 50 A 75 A DC - 500 kHz 0,01 % Voltage output BNC socket 1 V
    DS50-UB-10V 36 A 50 A DC - 500 kHz 0,01 % Voltage output BNC socket 10 V
    DS200-ID 200 A 300 A DC - 1 MHz 0,01 % Current output 9-pin. SUBD 100 calibration turns
    DS200-ID-CD100 200 A 300 A DC - 1 MHz 0,01 % Current output 9-pin. SUBD
    DS200-ID-CD1000 200 A 300 A DC - 1 MHz 0,01 % Current output 9-pin. SUBD 100 calibration turns
    DS200-UB-1V 200 A 300 A DC - 500 kHz 0,01 % Voltage output BNC socket 1 V
    DS200-UB-10V 140 A 200 A DC - 500 kHz 0,01 % Voltage output BNC socket 10 V
    DS600-ID 600 A 900 A DC - 500 kHz 0,01 % Current output 9-pin. SUBD
    DS600-ID-CD100 600 A 900 A DC - 500 kHz 0,01 % Current output 9-pin. SUBD 100 calibration turns
    DS600-UB-1V 600 A 900 A DC - 300 kHz 0,01 % Voltage output BNC socket 1 V
    DS600-UB-10V 424 A 600 A DC - 300 kHz 0,01 % Voltage output BNC socket 10 V
    DQ600-ID-P1300 919 A 1300 A DC - 300 kHz 0,01 % Current output 9-pin. SUBD
    DS1000-UB-10V 700 A 1000 A DC - 300 kHz 0,01 % Voltage output BNC socket 10 V
    DM1200-ID 1200 A 1500 A DC - 300 kHz 0,01 % Current output 9-pin. SUBD
    DM1200-UB-10V 850 A 1200 A DC - 300 kHz 0,01 % Voltage output BNC socket 10 V
    DL2000-ID 2000 A 3000 A DC - 300 kHz 0,01 % Current output 9-pin. SUBD
    DL2000-ID-CD100 2000 A 3000 A DC - 300 kHz 0,01 % Current output 9-pin. SUBD 100 calibration turns
    DL2000-UB-1V 2000 A 3000 A DC - 300 kHz 0,01 % Voltage output BNC socket 1 V
    DL2000-UB-10V 1414 A 2000 A DC - 300 kHz 0,02 % Voltage output BNC socket 10 V
    DR5000-IM 5000 A 8000 A DC - 100 kHz 0,05 % Current output 4mm sockets
    DR5000-UX-10V_7500 A 5000 A 7500 A DC - 100 kHz 0,05 % Voltage output 3-pin XLR mini plug socket
    DR10000-IM 7000 A 10000 A DC - 100 kHz 0,05 % Current output 4mm sockets
    DR10000-UX-10V 7000 A 10000 A DC - 100 kHz 0,05 % Voltage output 3-pin XLR mini plug socket
    Features

    • High bandwidth up to 1 MHz
    • AC and DC measurement
    • Current and Voltage outputs
    • Aluminium case for protection against EMC disturbances
    • Precision measurement with zero flux principle
    • Galvanically isolated output
    • Protected tranducers working with open output and/or without supply
    • External power supply DSSIU4-1U with compact case 19”, 1 HU for simultaneous working with up to 4
    • transducers (DSSIU-6-1U up to 6 transducer)
