PQA7000
Power Quality Analyzer
DC – 20 kHz
Standard | Option
        Features:
  • 4 Voltage Inputs
  • 5 Current Inputs
• Voltage Measurement 20 mV - 1600 V
• Current Measurement 0,5 mA – 150 kA
• Supraharmonics up to 20 kHz, Samplerate 48 kS/s

  • Accuracy 0,05 %
  • Measuring, Storing and analyzing of Current, Voltage, Power, Supraharmonics and Transient values
  • Current inputs for AC/DC-Current Clamps, Rogowski Flex Sensors and Fluxgate Current Transducers
  • Graphical User Interface with Touchscreen
  • Harmonics, Interharmonics, THD, TDD
  • Supraharmonics 2-9 kHz (IEC 61000-4-7)
  • Samplerate for Transients 48 kHz
  • Power Quality according EN50160
  • LAN/WLAN, LTE, Bluetooth, RS485, CAN, GPS, Digital IO
  • Internal Storage 256 GB / Optional up to 1 TB
        Options
  • AC/DC current measuring clamps
  • Rogowski coils
  • Zero flux current transformer
       On request

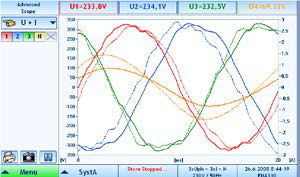

Oscilloscope
Table
Supraharmonics
Transients
Data sheets
» PQA7000/8000H
