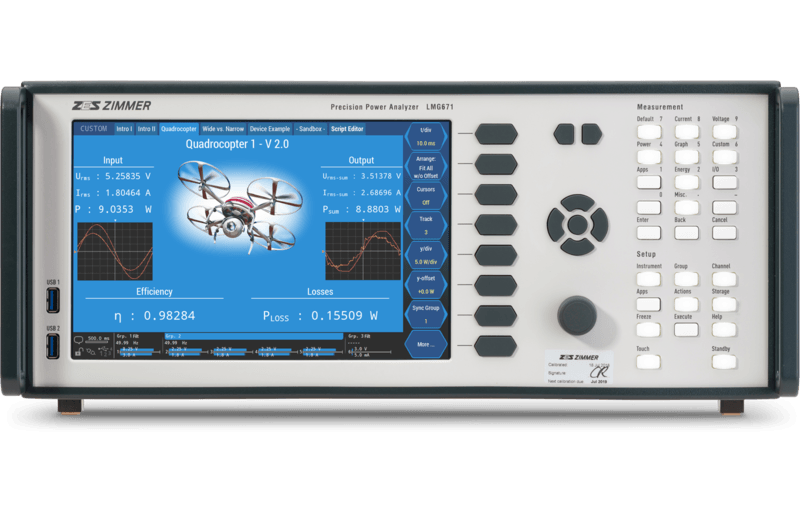

LMG671
LMG671 series
Precision Power Meters
Bandwidth DC - 10 MHz
Standard | Option
Features
  • 1 - 7 Power Channels
  • Bandwidth DC - 10 MHz
  • Basic Accuracy 0.03%
  • Simultaneous measurement of total and fundamental power          (Dual Path)
  • Measuring inputs for compensated current clamps, Shunts, Current transducers and high voltage dividers
  • Graphical User Interface and Touch Control
  • Gigabit-LAN-Interface for gapless streaming of Sample Values
  • Internal Memory for storing measuring values and png Graphics
  • Selectable Power Channels with different bandwidth 10 kHz,            500 kHz or 10 MHz
  • Remote Control Software
Options
  • DVI Output for external screens
  • PSI Interface (substituted one power measurement channel): 32 analog outputs for measuring and calculated values. Frequency- and analog inputs to measure speed and torque simultaneously with power values
  • Star Delta Wiring
  • Harmonic analysis up to 1000 Harmonics
  • CE Compliance Tests according IEC 61000-3-2/-12/-3 (harmonics and flicker)
  • Event-Trigger
  • CAN-Interface to transmit simultaneous 256 measurement values (ISO 11898-2, Highspeed-CAN)
Model Performance measurement channels basic accuracy voltage range Current range internal External sensor area
LMG671 1-7 0,03 % 3 V - 1.000 V 5 mA - 32 A 30 mV - 4 V
Performance measurement channels
description bandwidth basic accuracy 45 - 65 Hz basic accuracy DC voltage range
A-Channel DC - 10 MHz 0,03 % 0,08 % 3 - 1000 V
B-Channel DC - 500 kHz 0,1 % 0,2 % 3 - 1000 V
C-Channel DC - 10 kHz 0,04 % 0,2 % 3 - 1000 V
S-Channel DC - 10 MHz 0,03 % 0,04% 3 - 1000 V AC, 1500 V DC
