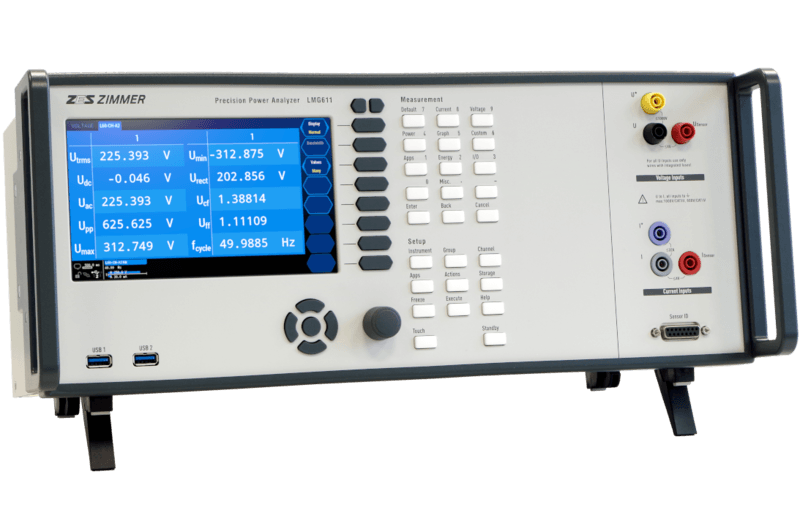

LMG611
LMG611 series
Precision Power Analyzers
Bandwidth DC - 10 MHz
Standard
| Option
Features
- 1 Power Channel
- Basic accuracy 0,03%
- Simultaneous measurement of total and fundamental power (Dual Path)
- Measuring inputs for compensated current clamps, shunts, current transducers and high voltage dividers
- Graphical User Interface and Touch Control
- Gigabit-LAN-Interface for gapless streaming of Sample Values
- Internal Memory for storing measuring values and png Graphics
- Selectable Power Channels with different bandwidth 10 kHz, 500 kHz or 10 MHz
- Remote Control Software
Options
- Harmonic analysis up to 1000 Harmonics
- CE Compliance Tests according IEC 61000-3-2/-12/-3 (harmonics and flicker)
- Event-Trigger
- CAN-Interface to transmit simultaneous 256 measurement values (ISO 11898-2, Highspeed-CAN)
| models | Performance measurement channels | bandwidth | Basic accuracy | Voltage range | Current range internal | External sensor areas |
|---|---|---|---|---|---|---|
| LMG611-A | 1 | DC - 10 MHz | 0,03 % | 3 V - 1.000 V | 5 mA - 32 A | 30 mV - 4 V |
| LMG611-B | 1 | DC - 500 kHz | 0,1 % | 3 V - 1.000 V | 5 mA - 32 A | 30 mV - 4 V |
| LMG611-C | 1 | DC - 10 kHz | 0,04 % | 3 V - 1.000 V | 5 mA - 32 A | 30 mV - 4 V |
